DIONE EQUIPMENT TRADING
A team of professionals is ready to select the best solutions in accordance with the terms of reference
We select and supply high-tech equipment for all stages of wastewater treatment and water treatment
All types of equipment from reliable manufacturers, proven by time and experience
Product line

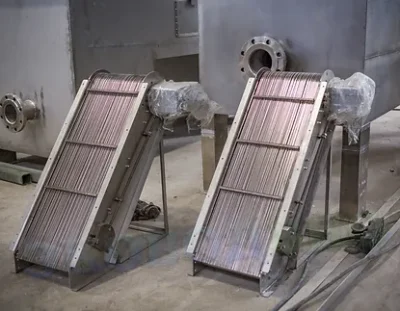

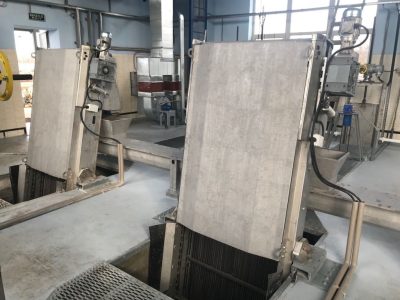

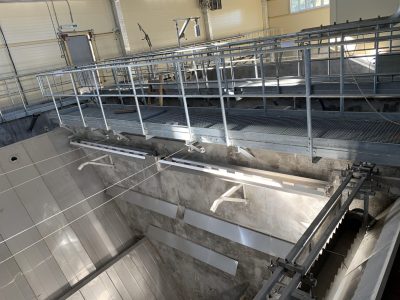

Mechanical cleaning
The purpose of mechanical cleaning stage is to extract large garbage (stones, sticks, rags, bags, etc.) from household and industrial wastewater.
Several types of gratings are used for mechanical cleaning. The most common types are: rake grate, hook grate, screw grate, drum sieves, sand separators, as well as other types of cleaning devices.
All types of equipment are highly durable and reliable. Current filter screens are: efficient, but at the same time affordable equipment, provide ease of operation and protection of technological equipment located downstream.
Clearance: from 3 to 100 mm
Tilt angle: 65 -85 degrees
Channel width: from 600 to 2500 mm
Channel depth: from 600 to 75000 mm
Material: stainless steel AISI 304

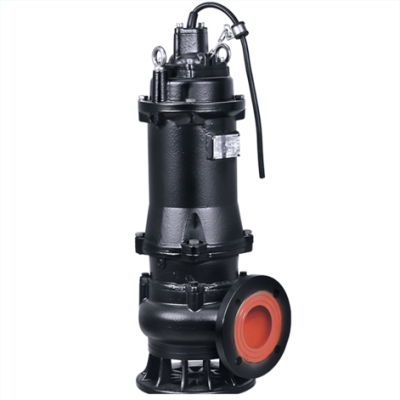

Pumps and pumping stations
Fecal pumps are designed for pumping sewage, including those with large inclusions.
- Muddy and dirty water
- Fecal and stormwater
- Liquid waste
The model range and technical characteristics of fecal pumps is very wide. Our experts will select the best option for price and quality in order to solve the task you are facing.
Capacity: up to 1900 m3/h
Head: up to 61 meters
Insulation class: B
Water temperature: up to 40°C
Maximum depth: 20 m
PH: from 6 to 10
Liquid density: 1.3 g/cm3

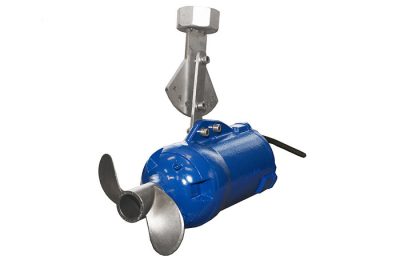

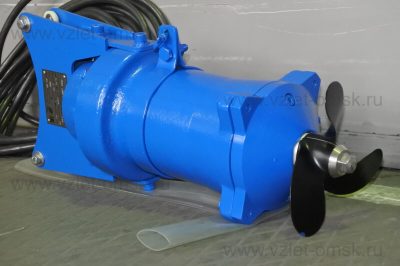

Submersible agitators
Power: 0.5 – 7.5 kW
RPM: 750 – 1450 rpm
Screw diameter: 150 – 800 mm
Submersible agitators for sewage treatment plants play an important role in ensuring the efficient operation of a wastewater treatment plant.
Agitators play an important role in achieving uniformity of effluents and have special characteristics. They are an important link in the process chain and support the sustainable operation of the entire system.
Thanks to the convenient and reliable mounting, the agitators are easily installed and fixed in the desired position. The control system allows you to monitor the operation of the agitator and adjust the speed of rotation of the rotor depending on the required cleaning process.
The agitators are made of corrosion-resistant materials: stainless steel, cast iron.

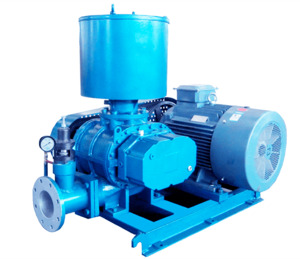

Industrial blowers
Industrial blowers are special–purpose equipment that is used to supply air in large volumes, while the pressure generated is negligible.
Depending on the model, the devices are capable of supplying air in a volume of up to 45,000 m3/hour, at a pressure of up to 1400 mBar. In addition to air injection, industrial rotary blowers are used, if necessary, to create a negative pressure with values up to – 550 mBar.
The air flow is created using a rotary pump of the ROOTS type, which is driven by an electric or diesel engine.

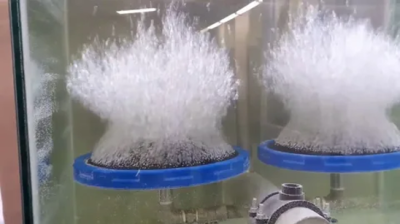

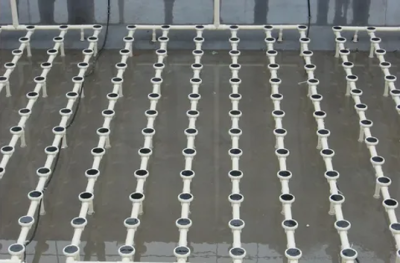

Aeration systems
In order to comply with certain conditions for wastewater treatment in aerotanks, aerators are required to saturate wastewater with oxygen.
The advantages of choosing poppet type aerators are:
- Uniform formation of air bubbles at full load range
- Possibility of continuous and periodic aeration mode
- Chemical, corrosion and mechanical resistance
- Quick and easy installation

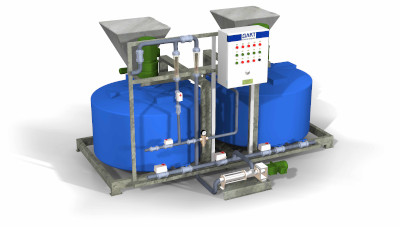

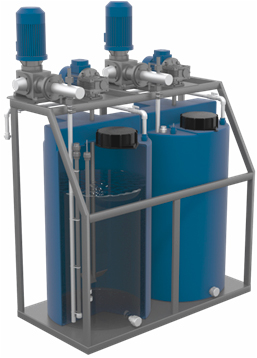

Dosing stations
Dosing stations are designed to store and release flocculant into the water, allowing for chemical purification or post-treatment of water
Stations are usually used before aero tanks or at the last stage of wastewater treatment, when additional phosphorus treatment is required.
The flocculant creates flakes, which then linger on the water purification filters. The stations are connected to control cabinets that operate in automatic mode and supply flocculant depending on the result of water sampling.

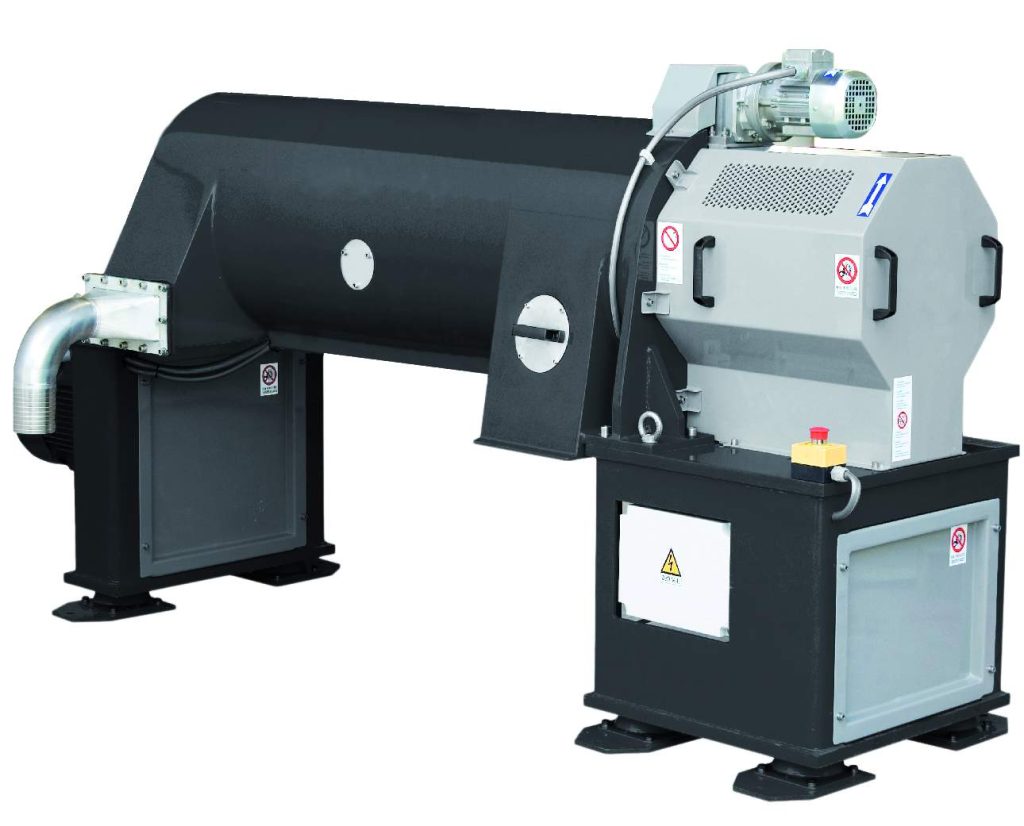

Centrifuges and decanters
Hydraulic capacity: 5 – 120 sq.m./h
Drum diameter: 250- 650 mm
Drum Length: 1 – 2.6m
Length of the whole equipment: 2.2 – 5 m
The decanter (centrifuge for two-phase separation) is used for thickening and dewatering of sediments formed in various stages of wastewater treatment. For mechanical dehydration, the use of decanters with flocculants is recommended.
Special design features of the screw in the decanter create an additional pressing effect in the conical part. The best separation results are achieved due to the maximum residence time of the solid inside the drum.
One of the advantages of decanters is their size. They take up less space than belt filter presses for dewatering fur.

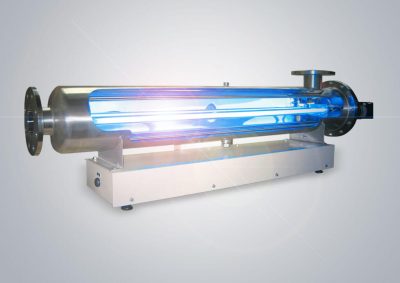

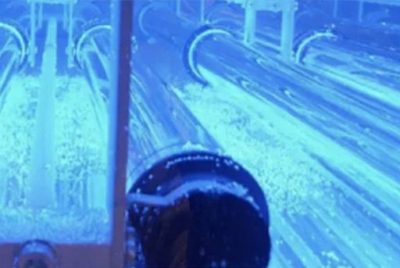

UV installations for water disinfection
Ultraviolet disinfection is one of the methods of final wastewater treatment before their release into natural reservoirs. This method is very widespread due to its relatively low cost and safety for humans and the natural environment.

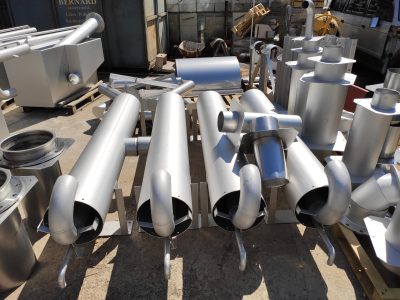

Non-standard stainless or galvanized steel products
- Supports
- Air ducts
- Drain gutters
- Lifting mechanisms for submersible pumps and agitators
Certificate of incorporation
Invitation to cooperation
Are you faced with the task of selecting equipment for wastewater treatment plants?
Our team will select equipment according to the Customer’s Specifications
It is possible to select equipment from different manufacturers and for different types of technologies
